Thermal Barcode Printers

Barcode Printers generate an image on the medium by utilising controlled heat. Direct thermal printing and thermal transfer printing are the two types of thermal printing.

1. Desktop Printers

TSC Printers

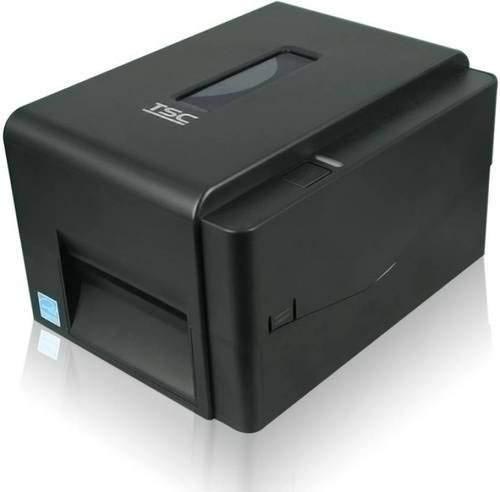

TE244 / TE200 / TE210 / TE310 (4’ TSC Desktop Label Printers)

  • 152.4 mm (6”) per second print speed
  • 300 meter (984”) ribbon supply on a 25.4 mm (1”) core (coated outside)
  • 72 to 110 meter (361”) ribbon supply on a 12.7 mm (0.5”) core (coated outside)
  • 127 mm (5”) od internal media supply, optional external media holder supports 214 mm (8.4”) od label rolls on 76.2 mm (3”) core
  • Prints machanism for kiosk applications
  • 400 mhz 32-bit risc processor with 16 mb sdram, 8 mb flash memory
  • Internally scalable true type fonts
  • Free windows® drivers and label design software (available via download)
  • Energy star® qualified

TT065-52 / TT065-62 (4’ TSC Desktop Thermal Transfer Label Printers)

  • 152.4 MM (6”) PER SECOND PRINT SPEED
  • 300 METER (984”) RIBBON SUPPLY ON A 25.4 MM (1”) CORE (COATED OUTSIDE)
  • 72 TO 110 METER (361”) RIBBON SUPPLY ON A 12.7 MM (0.5”) CORE (COATED OUTSIDE)
  • 127 MM (5”) OD INTERNAL MEDIA SUPPLY, OPTIONAL EXTERNAL MEDIA HOLDER SUPPORTS 214 MM (8.4”) OD LABEL ROLLS ON 76.2 MM (3”) CORE
  • PRINTS MACHANISM FOR KIOSK APPLICATIONS
  • 400 MHZ 32-BIT RISC PROCESSOR WITH 16 MB SDRAM, 8 MB FLASH MEMORY
  • INTERNALLY SCALABLE TRUE TYPE FONTS
  • FREE WINDOWS® DRIVERS AND LABEL DESIGN SOFTWARE (AVAILABLE VIA DOWNLOAD)
  • ENERGY STAR® QUALIFIED

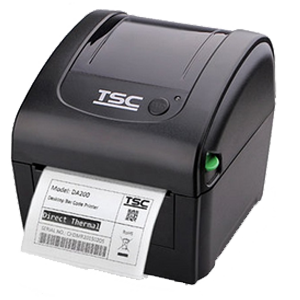

DA200 / DA210 / DA310 (4’ TSC Desktop Direct Thermal Label Printers)

  • HIGH QUALITY DOUBLE-WALLED CLAMSHELL DESIGN
  • 6 INCHES PER SECOND PRINT SPEED
  • 16 MB SDRAM AND 8 MB FLASH MEMORY
  • EASY MEDIA LOADING
  • USB 2.0 (HIGH SPEED MODE)
  • TSPL-EZ™ FIRMWARE EMULATES ELTRON® AND ZEBRA® LANGUAGES OUT OF THE BOX
  • ENERGY STAR® QUALIFIED

TTP-247 / TTP-345 (4’ TSC Desktop Thermal Transfer Label Printers)

  • UP TO 177.8 MM (7”) PER SEC. PRINT SPEED
  • 4 MB FLASH MEMORY AND 8 MB SDRAM MEMORY
  • SD FLASH MEMORY EXPANSION UP TO 4 GB
  • USER-FRIENDLY CLAMSHELL DESIGN
  • LABEL GAP SENSOR & FULL-RANGE ADJUSTABLE BLACK MARK SENSOR
  • PARALLEL, SERIAL & USB 2.0 INTERFACES STANDARD
  • MAIN BOARD INTEGRATED WITH INTERNAL ETHERNET (FACTORY OPTION)
  • LABEL CAPACITY UP TO 214 MM (8.4”) OD
  • RIBBON CAPACITY UP TO 300 M (984’)
  • TSPL-EZ™ FIRMWARE FOR PLUG-N-PLAY EASE
  • OPTIONAL PEEL-OFF MODULE, CUTTER MODULE, BLUETOOTH MODULE, STAND-ALONE KEYBOARD AND SCANNER

Citizen Printers
CL-E321 / CL-E331 (4’ Citizen Desktop Thermal Transfer Label Printers)

  • Paper width: Variable paper width - 1 inch (25.4 mm) – 4.6 inches (118.1 mm)
  • Paper load: Hi-Lift™ mechanism and ClickClose™ closure
  • Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)
  • Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
  • Paper thickness: Paper thickness up to 0.150mm
  • Case colour : Available in Black or White
  • Media sensor: Adjustable media sensor & Black mark sensor
  • Tear bar : Upper and lower tear bar

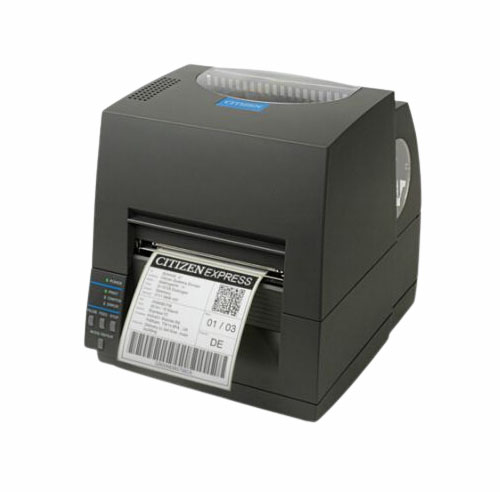

CL-S621 / CL-S631 – (4’ Citizen Desktop Thermal Transfer Label Printers)

  • Paper width: Variable paper width - 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
  • Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Printing Speed: Fast print out - 6 inches per second (150 mm per second)
  • Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
  • Ribbon options: Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons
  • Paper thickness: Paper thickness up to 0.250mm
  • Low space requirement - integrated power supply enables clean work station
  • Energy: Internal power supply for reliability
  • Media sensor: Black mark sensor, Adjustable media sensor & Label gap sensor
  • Tear bar: Standard tear-bar for perforated tags

Zebra Printers

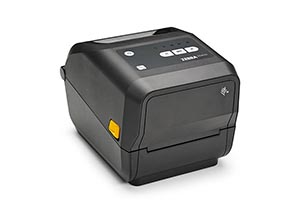

ZD420t (4’ Zebra Desktop Thermal Transfer Label Printers)

  • Print methods: Thermal Transfer or Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR qualified

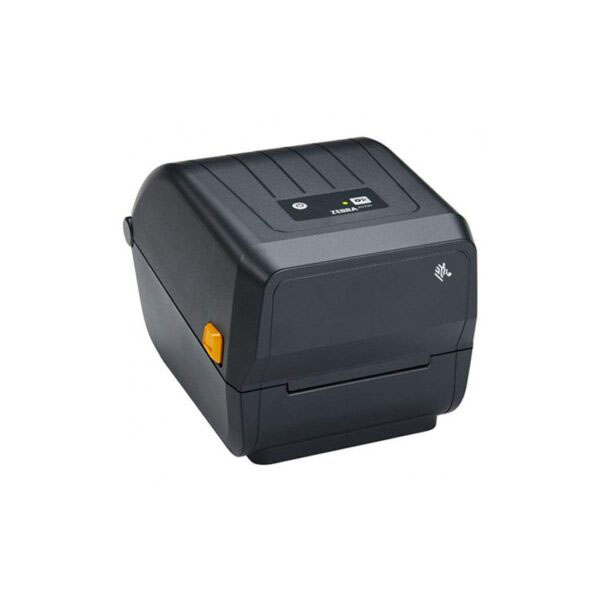

ZD230t (4’ Zebra Desktop Thermal Transfer Label Printers)

  • Print methods: Thermal Transfer or Direct Thermal
  • ZPL and EPL programming languages
  • 5 status icon, 3 button user interface
  • USB 2.0, USB Host
  • OpenACCESS™ for easy media loading
  • Dual-wall frame construction
  • ENERGY STAR qualified

2. Industrial Printers

TSC Printers

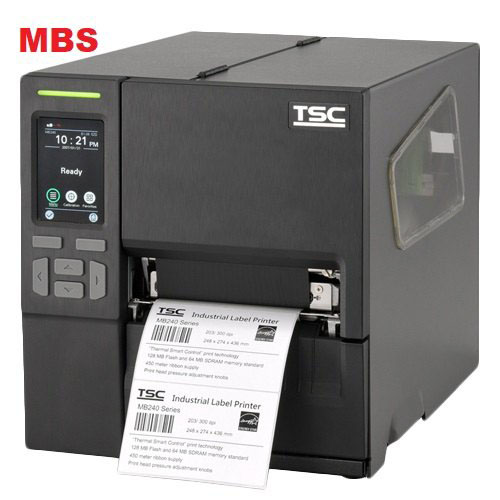

MB240T / MB340T (4’ TSC Industrial Label Printer)

  • Small footprint & rugged design.
  • Weight: 39% less, size: 30% smaller than ttp-246m pro
  • Flexible & advanced tph mechanis
  • Flexible tph pressure adjustment & adjustable heat line reinforced tph module hook wide open angle for media handling
  • 3.5” intuitive color touch display ease of use 3.5” touch color gui display and intuitive indicators
  • Versatile availability of connectivity
  • Standard usb, usb host, serial and internal ethernet
  • Optional seamless 802.11 a/b/g/n wireless slot-in module or internal steady bluetooth 4.2 mfi interface
  • One step to quick setup / update
  • Scan 1d/2d barcode to setup or clone the configurations in one step

MH240T / 340T / 640T (4’ TSC Industrial Label Printer)

  • "THERMAL SMAN CONTROL" PRINT TECHNOLOGY PRODUCES CLEANEST, HIGH QUALITY BARCODES
  • UP TO 356 MM (14") PER SEC. PRINT SPEED
  • EASY TO OPERATE WITH THE BRAND NEW GUI DESIGN ON DISPLAY
  • 3.5” COLOR LCD WITH 6-BUTTON CONTROL FOR STANDARD MODEL OR 4.3” COLOR TOUCH LCD PANEL WITH 6-BUTTON CONTROL FOR ADVANCED MODEL
  • SUPPORT 8” OD FULL ROLL INTERNAL REWINDER (ONLY ON MH240P/MH340P/MH640P)
  • USB HOST INTERFACE FOR STAND-ALONE APPLICATIONS
  • AVAILABLE IN 203 DPI, 300 DPI AND 600 DPI RESOLUTIONS, FIRMWARE AUTOMATICALLY DETECTS PRINTHEAD RESOLUTION AND SWITCHES ACCORDINGLY.
  • 600 METER RIBBON SUPPLY
  • MICROSD FLASH MEMORY EXPANSION UP TO 32 GB
  • RIBBON CAPACITY AND LABEL NEAR END MONITOR WIDGET
  • TSPL-E2 FIRMWARE FOR PLUG-N-PLAY EASE
  • OPTIONS INCLUDE: GENERAL PURPOSE 10 CONNECTIVITY, INTERNAL BLUETOOTH MODULE, SLOT-IN 802.11 A/B/G/N WIRELESS MODULE KIT, AND REGULAR CUTTER
  • ENERGY STAR' CERTIFIED

ML240P / ML340P (4’ TSC Industrial Label Printer)

  • Streamlined and Small Footprint Design
  • Brand new compact design
  • Small footprint fits easily into more spaces and fits in limited operation areas
  • Robust and Agile Design for Optimal Quality
  • The combination of rugged die-cast, modularized base and adjustable TPH module design structure optimizes print quality
  • Noise-Reduction Printing Engineering
  • Its enhanced design and printing algorithm feature results in a quieter and smoother printing operation
  • Self-Diagnostic TPH Care Mechanism
  • An advanced mechanism allows for real-time printhead health status to ensure stable and high quality printouts for maximum cost-effectiveness
  • Effortless User Operation with Color Display
  • Wide open angle for easy media handling
  • Ease of use 2.3” color GUI display and intuitive indicator
  • One Step Maintenance
  • Tool-less removal and replacement of the printhead and platen roller saves time

TTP-2610MT (6’ TSC Industrial Label Printer)

  • HIGH QUALITY DIE CAST ALUMINUM DESIGN
  • “THERMAL SMART CONTROL”™ PRINT TECHNOLOGY PRODUCES CLEANEST, HIGH QUALITY BARCODES
  • 4.3” COLOR LCD WITH 6-BUTTON MENUS AND TOUCH PANEL OPERATION
  • 203 DPI AND 300 DPI MODELS
  • ETHERNET, USB 2.0, USB HOST, SERIAL AND PARALLEL CONNECTIVITY ARE STANDARD
  • 256 MB SDRAM, 512 MB FLASH SD FLASH CARD MEMORY EXPANDS STORAGE TO 32 GB
  • POWERFUL 32 BIT 536 MHZ RISC PROCESSOR
  • AUTO TPH RESOLUTION SWITCH DETECTION
  • STANDARD INDUSTRY EMULATIONS RIGHT OUT OF THE BOX INCLUDING ELTRON® AND ZEBRA® LANGUAGE SUPPORT
  • USB HOST FOR STAND-ALONE OR DATA ENTRY AT PRINT SITE

Citizen Printers

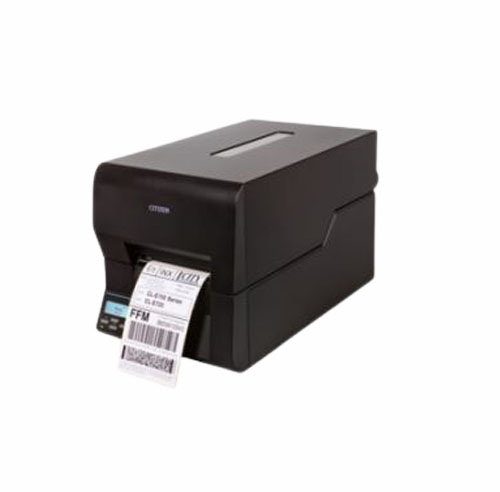

CL-E720 / CL-E730 (4’ CITIZEN Industrial Label Printer)

  • Paper width: Variable paper width - 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
  • Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Printing Speed: Ultra fast print out - up to 200mm per second (8 inches per second)
  • Media support: Very large media capacity - holds rolls up to 8 inches (200 mm)
  • Ribbon options: Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons
  • Paper thickness: Paper thickness up to 0.250mm
  • Display: Backlight LCD control panel for easy configuration
  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
  • Media sensor : Black mark sensor, Adjustable media sensor & Label gap sensor

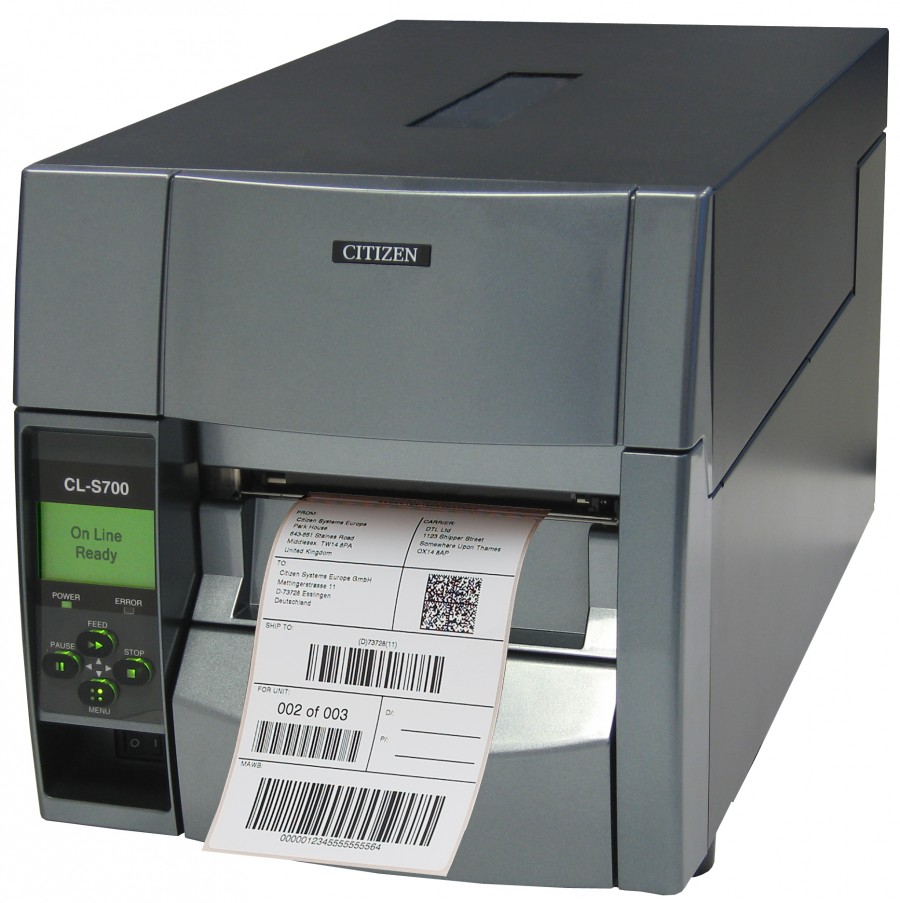

CL-S700 / CL-S703 (4’ CITIZEN Industrial Label Printer)

  • Paper width: Variable paper width - 1 inch (25.4 mm) – 4.6 inches (118.1 mm)
  • Paper load: Front access for all operations including media and ribbon changing
  • Printing Speed: Ultra fast print out - up to 250mm per second (10 inches per second)
  • Media support: Very large media capacity - holds rolls up to 8 inches (200 mm)
  • Ribbon options: Wide range of ribbon options - Uses up to 450 metres inside and outside wound ribbons
  • Paper thickness: Paper thickness up to 0.250mm
  • Display: Backlight LCD control panel for easy configuration
  • Front Loading Rewinder for easy rewinding of the backing paper when printing in "peel mode" or when printing batches of labels.
  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
  • Low space requirement - integrated power supply enables clean work station
  • Power switch located in recess at front of printer
  • Energy: Internal power supply for reliability
  • Media sensor: Adjustable media sensor, Black mark sensor & Label gap sensor
  • Tear bar: Standard tear-bar for perforated tags

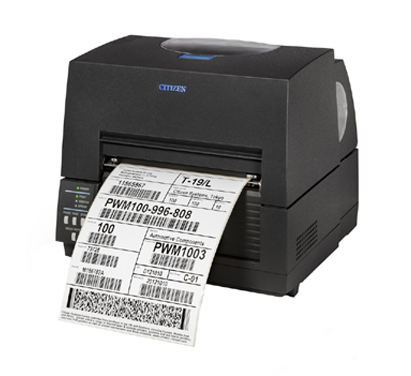

CL-S6621 (6’ CITIZEN Industrial Label Printer)

  • Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
  • Printing Speed: Fast printout - 6 inches per second (150 mm per second)
  • Media support: Large media capacity - holds rolls up to 4.9 inches (125 mm)
  • Ribbon options: Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons
  • Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
  • No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
  • Low space requirement - integrated power supply enables clean work station
  • Energy: Internal power supply for reliability
  • Media sensor: Adjustable media sensor
  • Tear bar: Standard tear-bar for perforated tag

Feel free to contact us for superior quality of printers and scanners.
